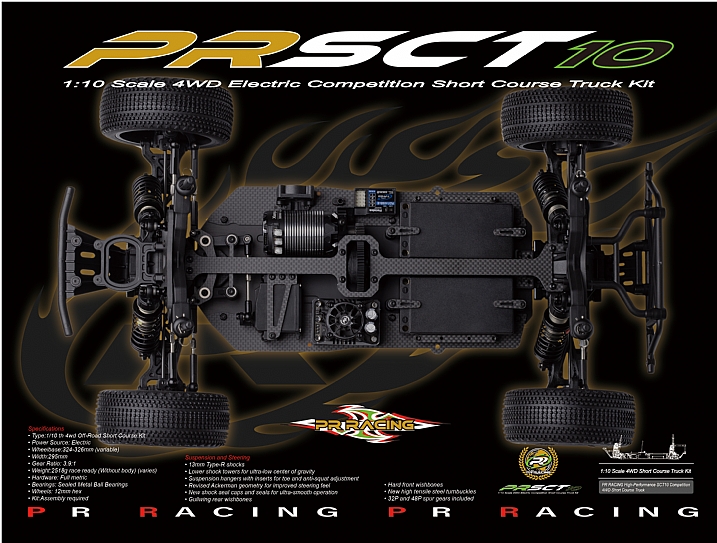

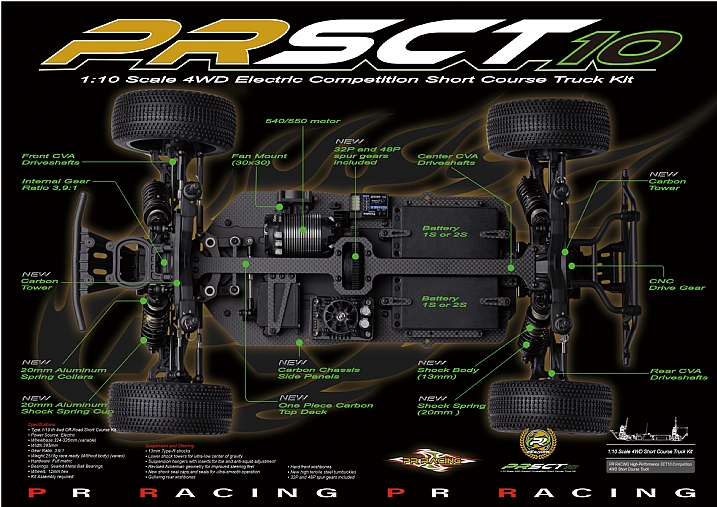

Specifications
• Type:1/10 th 4wd Off-Road Short Course Kit
• Power Source: Electric
• Wheelbase:324-326mm (variable)
• Width:295mm
• Gear Ratio: 3.9:1
• Weight:2518g race ready (Without body) (varies)
• Hardware: Full metric
• Bearings: Sealed Metal Ball Bearings
• Wheels: 12mm hex
• Kit:Assembly required
Suspension and Steering

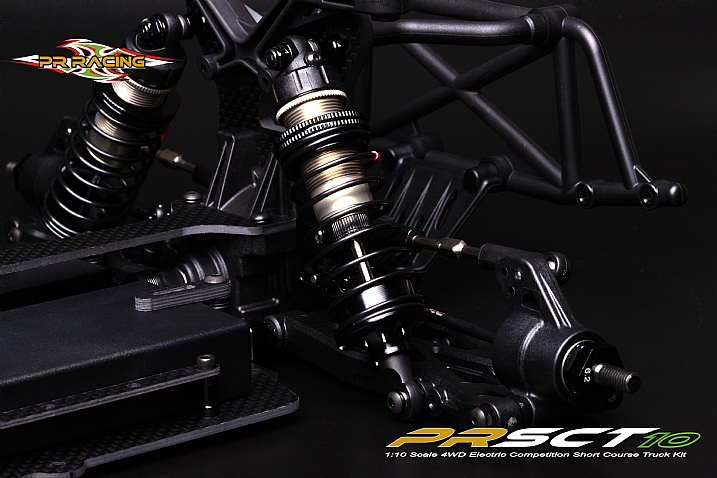

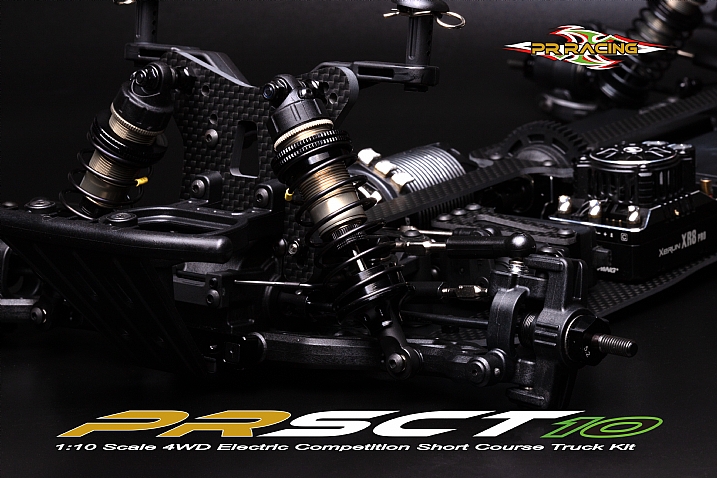

• 13mm Type-R shocks
• Lower shock towers for ultra-low center of gravity
• Suspension hangers with inserts for toe and anti-squat adjustment
• Revised Ackerman geometry for improved steering feel
• New shock seal caps and seals for ultra-smooth operation

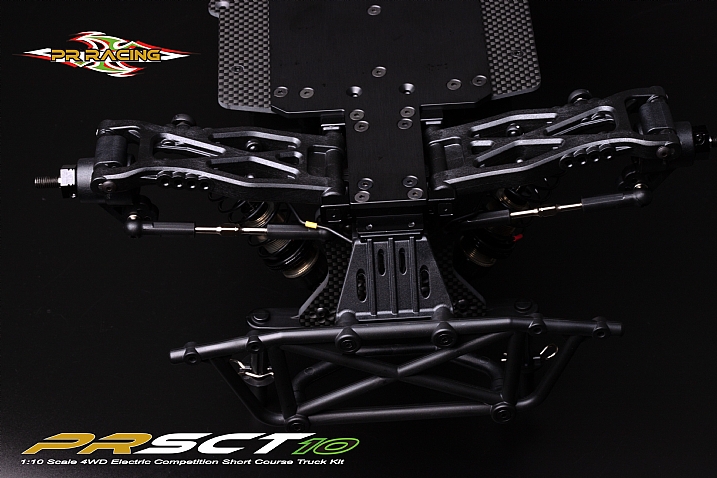

• Gullwing rear wishbones

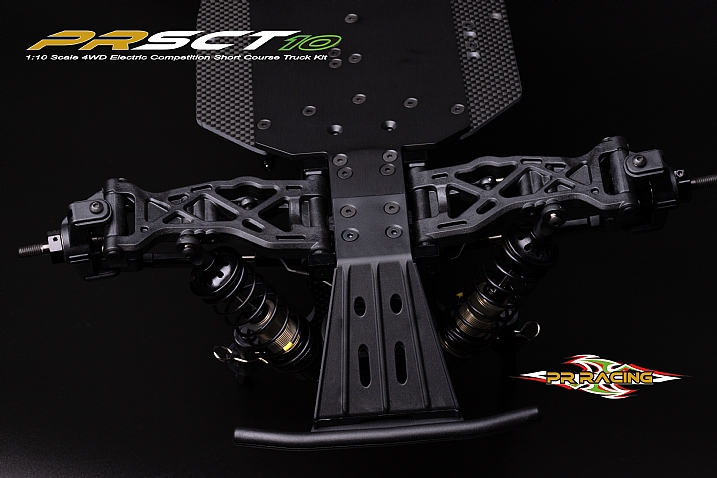

• Hard front wishbones
• New high tensile steel turnbuckles

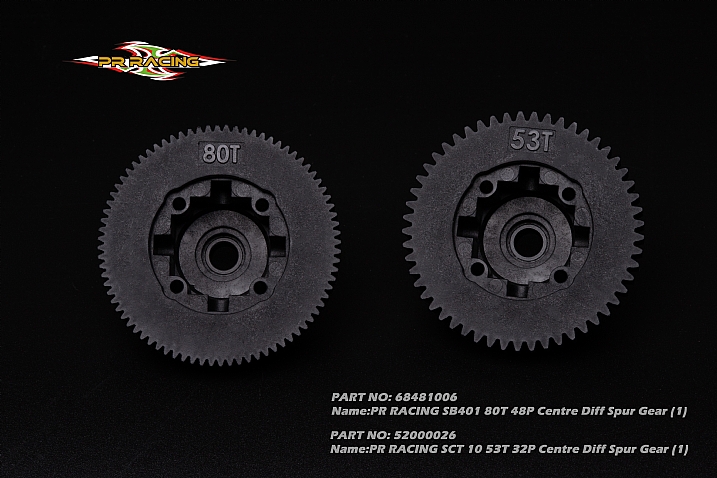

• 32P and 48P spur gears included
Items Required to Complete
• 2 Channel surface frequency radio system
• 2S-4S Lipo battery & compatible lipo charger
• 1/10 ESC, motor & pinion gear
• High-Speed Servo
•1/10 tyres and inserts
• Tools
• Paint for polycarbonate body
• Tyre glue
• Threadlock
• Silicon diff and shock oil
