 Feature


PART NO:68400246

Name:

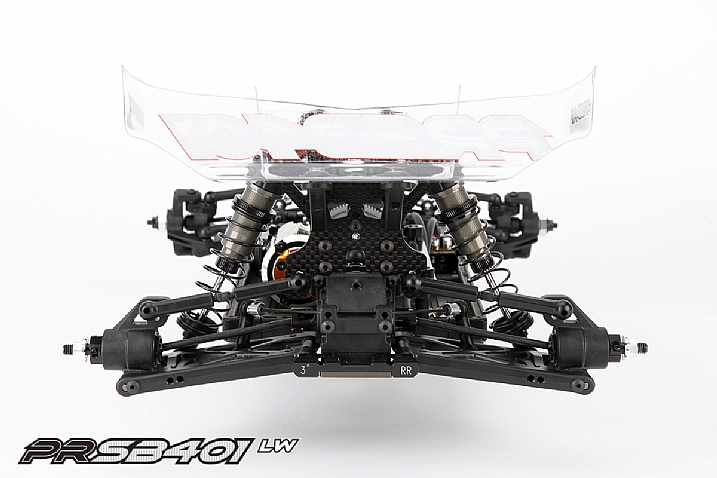

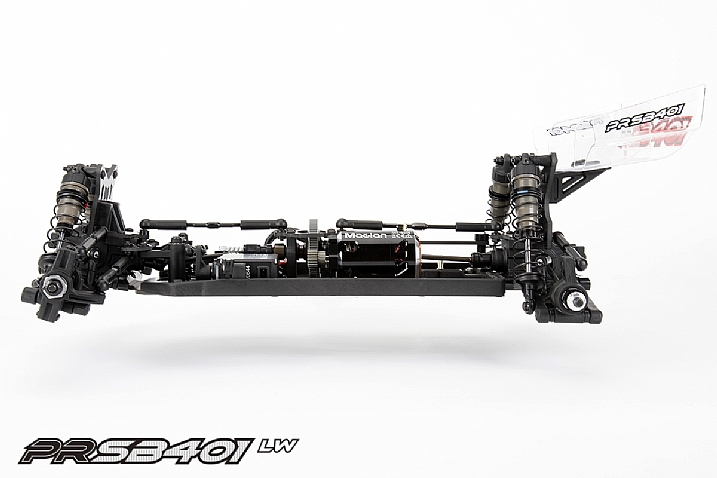

PR SB401-LW 1/10 Electric 4wd Off Road Buggy Kit Lightweight Edition(Slipper Clutch)



PR RACING introduce the latest version of the popular PRSB401 for 2017 in the form of a light weight version named the SB401 LW. In addition to extensive use of carbon fibre materials, the kit includes 12mm wheel hexes, new quieter differential gearboxes and a Turnbuckle Top Deck design to improve torsional flex characteristics. In total, the vehicle weight is reduced by up to 60g (depending on configuration and options) which improves agility and efficiency on the track.



SB401 LW Revisions:

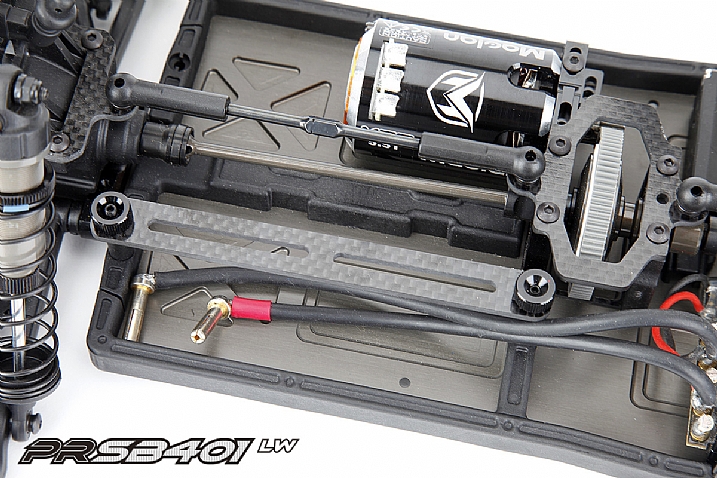

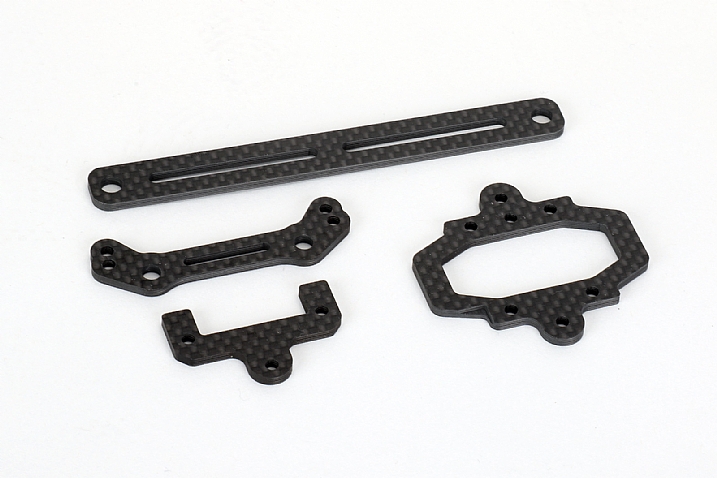

• Turnbuckle Top Deck For Increase Torsional Flex

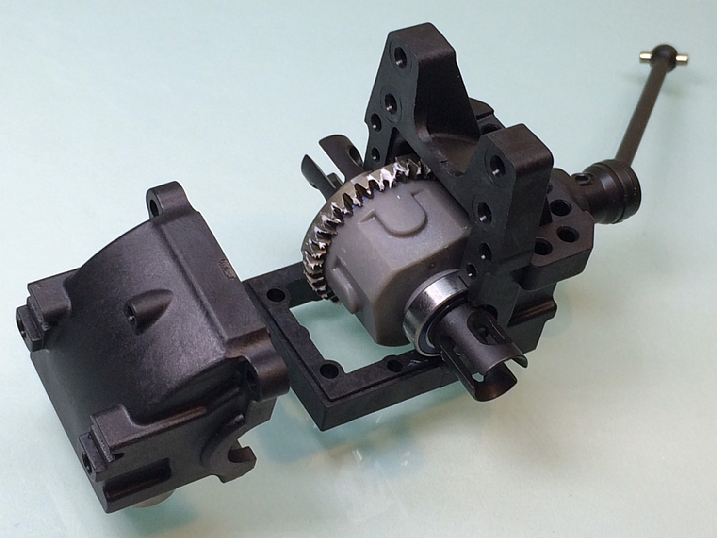

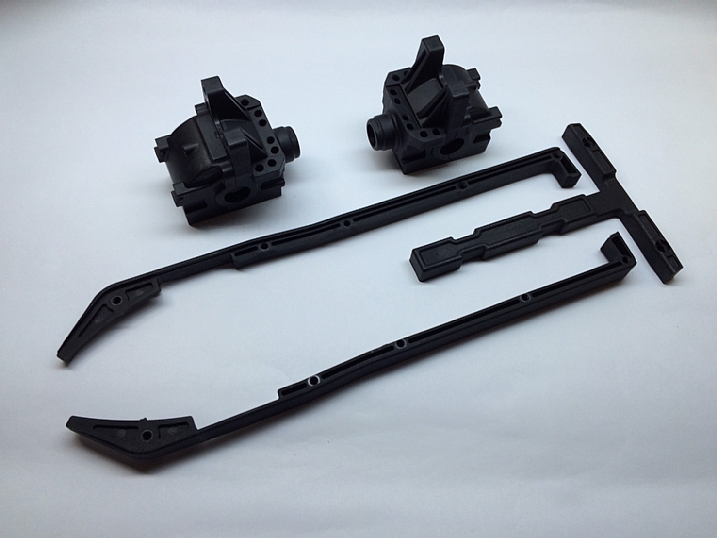

• Revised Gearbox Housing for Smoother Transmission

• Revised Ackerman Plate

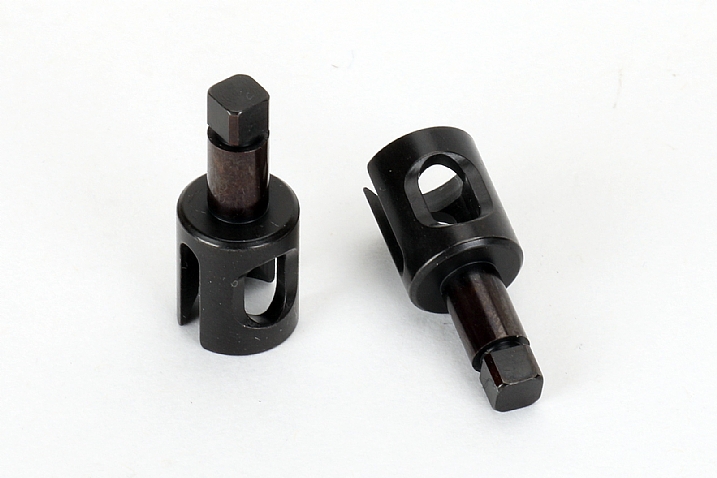

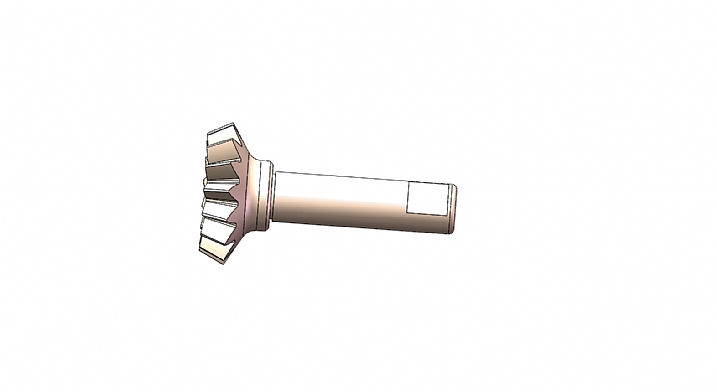

• Light Weight Differential Outdrives

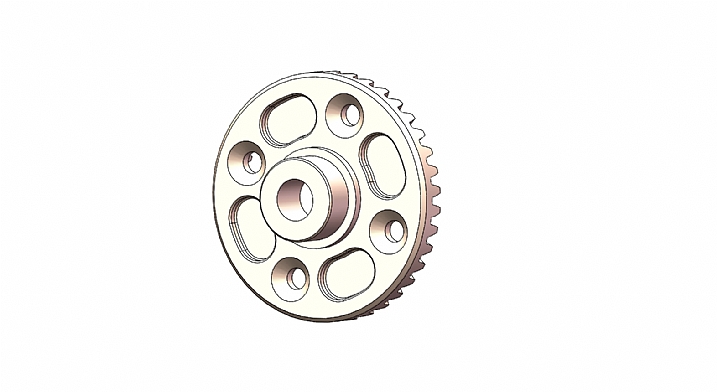

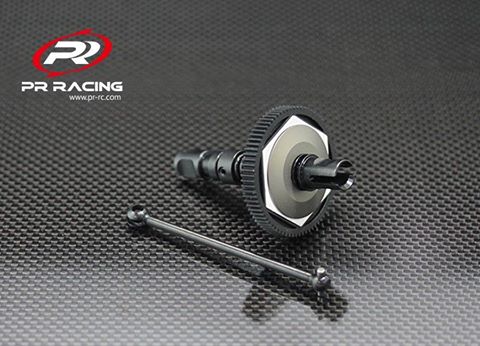

• 81T slipper assembly set

• Lightweight Body

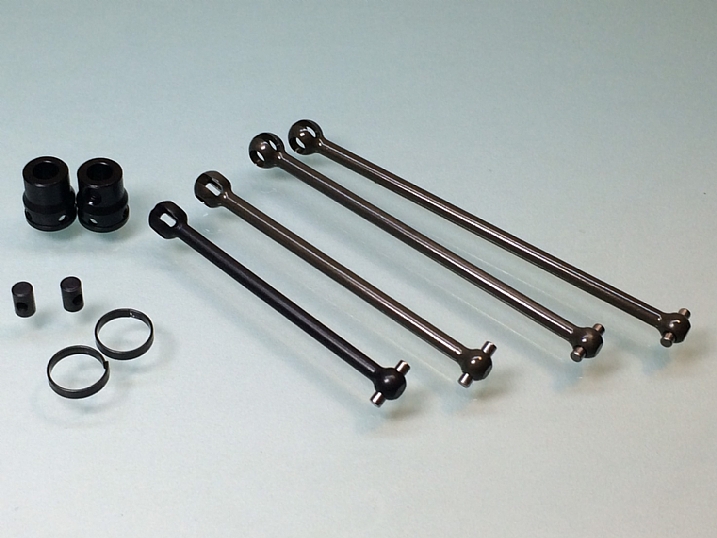

• Lightweight Centre CVDs

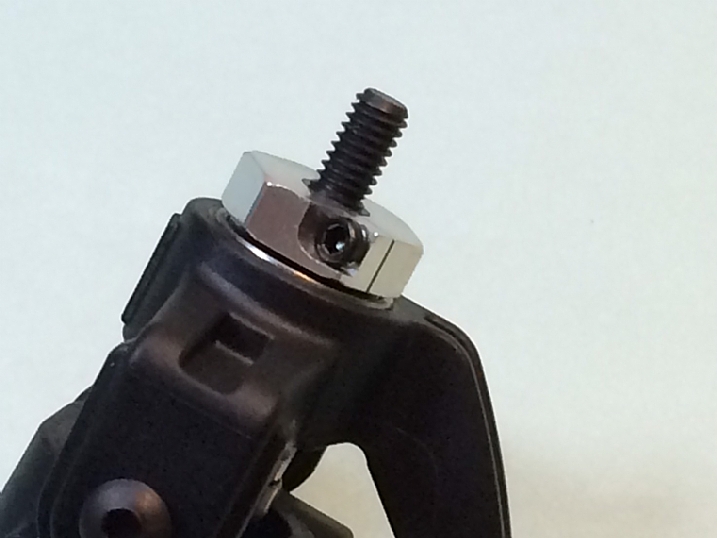

• New 12mm Wheel hexes

• Carbon Fibre Shorty Lipo Strap

 Specification
 SB401 Specifications



• 12 Degree Chassis Kick-Up

• All Metric Hardware

• Full Precision Ball Bearings

• Multiple Chassis Configuration Options

• Big Bore Oil Filled Aluminium Shocks

• CNC aluminium one-piece motor mount

• Gear Ratio: 2.6:1

• Motor: Electric

• Width:248mm

• Wheelbase: 284mm

• Minimum Age Recommendation: 14 years





Items required to complete:



• Metric 1.5mm, 2.0mm hex tools

• Metric 5.5mm, 7.0mm Nut Driver

• 2 Channel Surface Radio System (Minimum)

• 1/10 ESC, Motor & Pinion Gear

• High Speed Servo

• 2S LiPo Battery & Compatible Lipo Charger

• Polycarbonate Paint for Bodies

• Tires, inserts and CA Glue

• Silicon diff/shock oil

• Thread lock



Links to the manual for this buggy please:

https://www.dropbox.com/sh/kwl8gp5834vdl0a/AAD9d4WePue9rCXp5-O6puMXa?dl=0
