 Feature

PART NO:77500406

Name:PR SB401-R-T-SPORT 1/10 Electric 4WD Off-Road Truck
 Specification

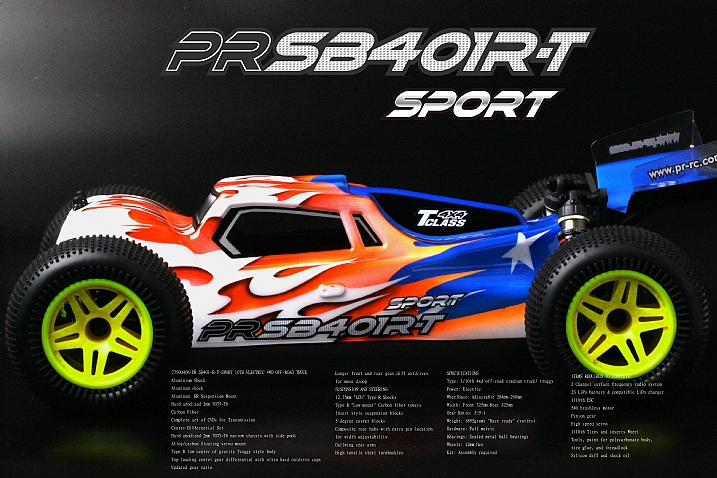

Name:PR SB401R-T SPORT  1/10 ELECTRIC 4WD OFF-ROAD STADIUM TRUCK / TRUGGY

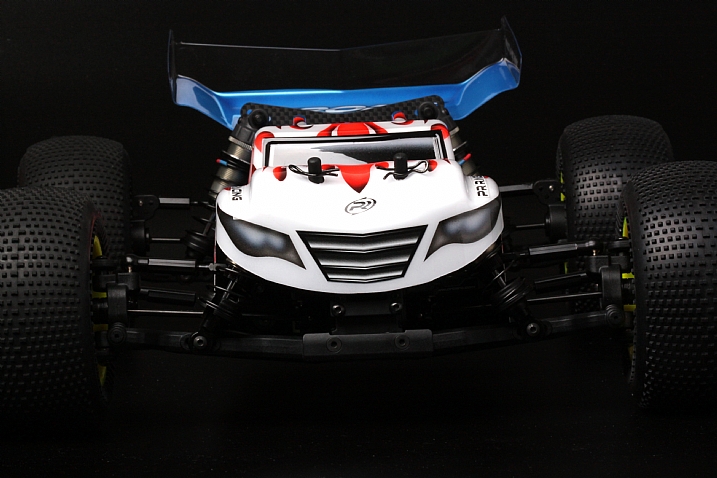

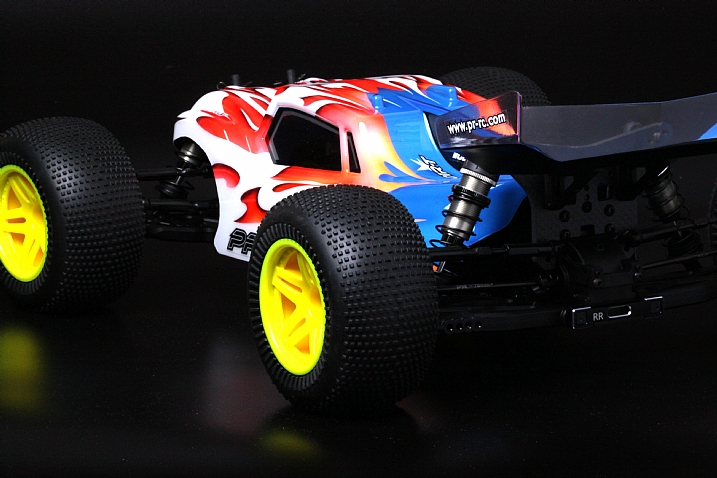

Pr racing has taken all the refinements and changes from the 401R buggy, and applied them to create the 401R-T! On top of that we have made further changes specifically for this vehicle to be the most capable, adjustable, duarable competition ST 4x4/ Truggy on the market out of the box! From the aggressive "Low Center of gravity" truggy body, to the "Type R" style shocks and towers. The 401R-T is ready to dominate on the very first lap!

Special features CHASSIS:

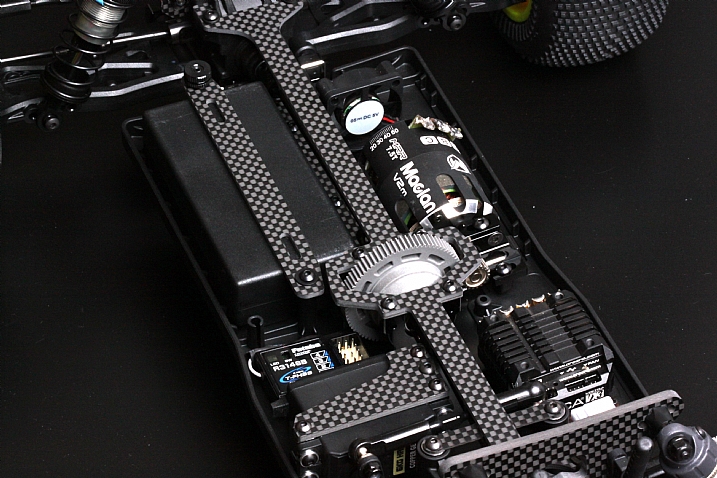

Hard anodized 2.5mm 6061-T6 Narrow chassis with side pods deck of added duarability. Alloy/carbon floating servo mount Type R low center of gravity Truggy style body

TRANSMISSION:

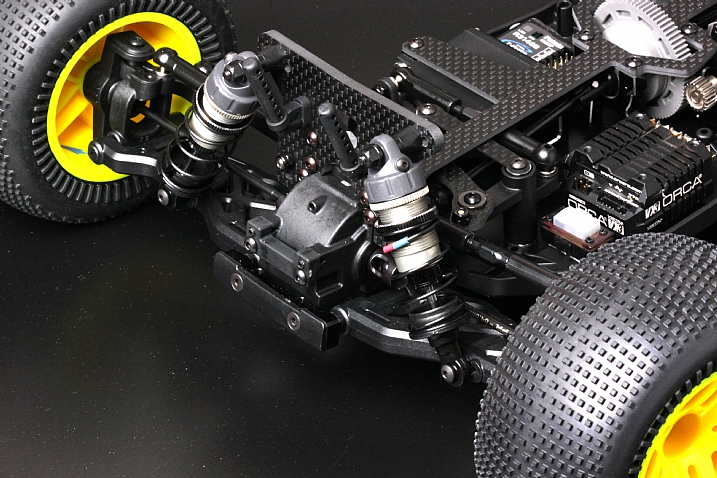

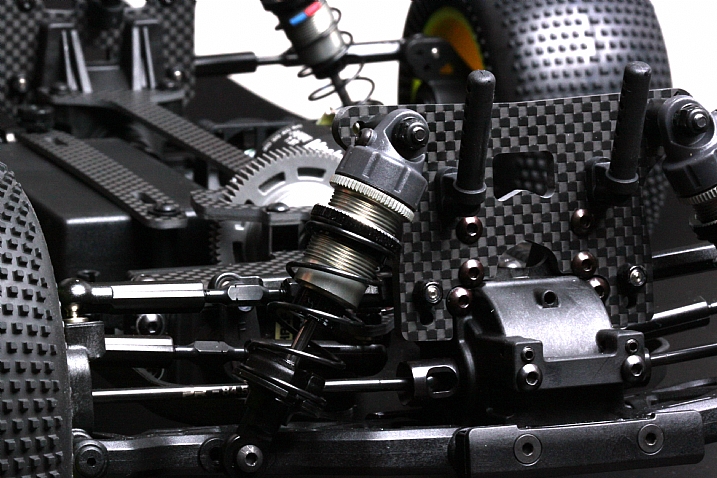

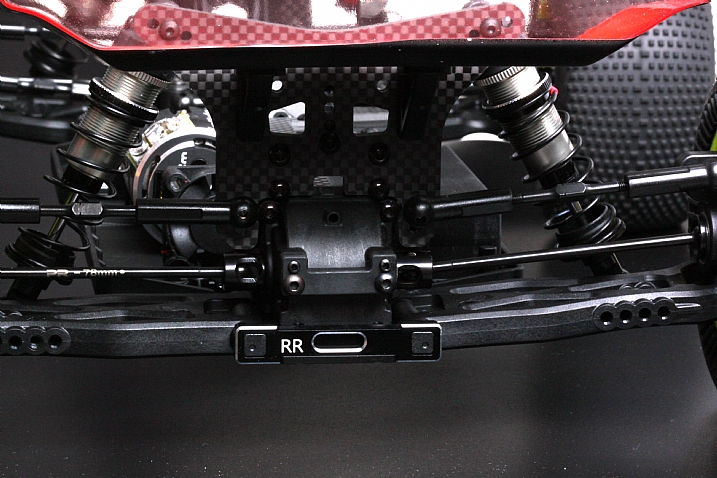

 Top loading Center gear differential with ultra hard cups Updated gear ratio Longer front and rear gear diff out drives for more droop SUSPENSION AND STEERING 12.75mm "LCG" Type R Shocks Type R "Low mount" Carbon fiber towers Insert style suspension blocks 5 Degree  caster blocks Composite rear hubs with extra pin location for added width adjustability Gullwing rear arms High tensile steel turnbuckles

SPECIFICATIONS Type: 1/10th 4wd off-road stadium truck/ truggy Power: Electric Wheelbase: Adjustable 284mm to 290mm Width: Front 325mm Rear 325mm Gear Ratio: 3:9:1 Weight: 1895grams "Race ready" varies Hardware: Full metric Bearings: Sealed metal ball bearings Wheels: 12mm Hex Kit: Assembly required

  ITEM REQUIRED TO COMPLETE 2 Channel surface frequency radio system 2S LiPo battery & compatible LiPo charger 1/10th ESC, 540 brushless motor, pinion gear High speed servo 1/10th Tires and inserts Wheel Tools, paint for polycarbonate body, tire glue, and threadlock Silicon diff and shock oil

videos:
https://www.youtube.com/watch?v=0Q3l4z_ZbZY
